File:100WPA 006.jpg

From HPSDRwiki
Jump to: navigation, search
Original file(2,272 × 1,712 pixels, file size: 792 KB, MIME type: image/jpeg)

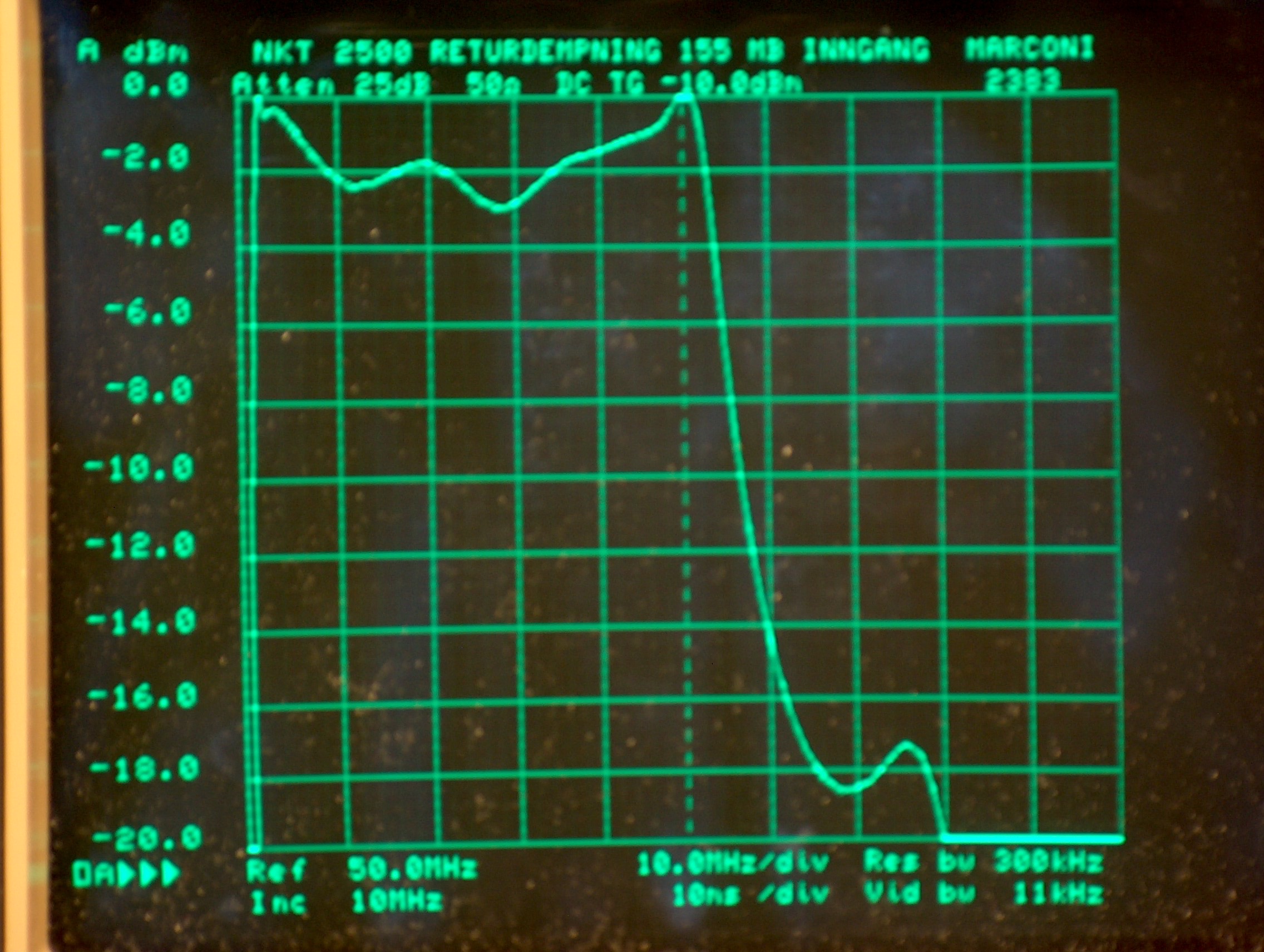

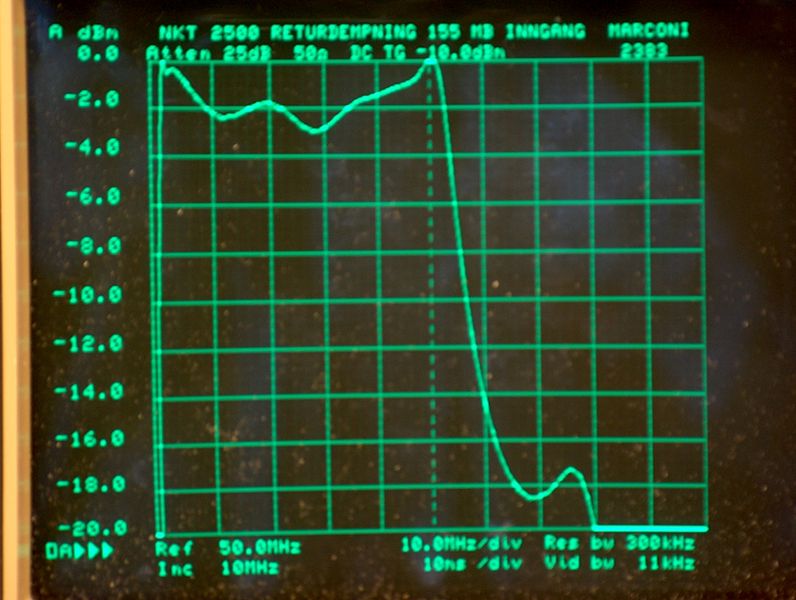

Setup to measure small signal gain from 0-100 MHz. Center frequency = 50 MHz. Horizontal resolution = 10 MHz/div. Vertical resolution= 2 dB/ div.
