High Performance Software Defined Radio

An Open Source Design

Status

Note black titles above are completed,
navy titles are near completion,
DarkCyan titles are proposed

Updates

July 13, 2012 Hermes order page is open. See the TAPR page for details. Must order before July 25, 2012.

March 18, 2012 Hermes interest list is open. See the TAPR page for details. To show your interest, you can sign up here: www.tapr.com (Note: Look under the tab after you log in)

January 28, 2012 SVN has been restored. See the Resource page for details

January 19, 2012 TAPR (tapr.org) and iQuadlabs (iquadlabs.com) jointly announce a sourcing agreement for the openHPSDR (openHPSDR.org) boards Magister, Mercury and Pennylane. See TAPR

August 7, 2011 Alex order page open at TAPR.

June 15, 2011 iQuadLabs.com is open for sales of Magister, Mercury, and PennyLane boards.

April 15, 2011 New US vendor for sold out boards iQuadLabs.com.

December 23, 2010 Metis order page open at TAPR.

September 3, 2010 The board that has been known as OzyII has be renamed to Metis

August 10, 2010 Hermes PC interface was changed from USB2 to ethernet PHY.

June 24, 2010 TAPR puts up a webpage of the TAPR and SDR forum talks from the 2010 Dayton Hamvention SDR Talks.

January 7, 2010 Magister order page open at TAPR.

October 18, 2009 Excalibur order page open at TAPR. PennyWhistle order pages open at TAPR.

May 24, 2009 Pandora order page open at TAPR.

May 3, 2009 HPSDR website, wiki, and e-mail lists now hosted at openHPSDR.org.

April 23, 2009 LPU order page open at TAPR.

March 28, 2009 The DVD's of the DCC are now availalbe. They are available from Gary KN4AQ website (arvideonews). TAPR has a link at (TAPR) There are several talks by HPSDR participants with very useful information.

February 11, 2009 Support page added, which contains the Schematics, BOM and PCB files used in the production of the HPSDR boards, FPGA software shipped in the boards and the test procedures used by TAPR before shipping.

January 11, 2009 Mercury manual added to the Website (in Documents documents.html) and Wiki (in DOC - wiki/index.php?title=DOC).

Project Description

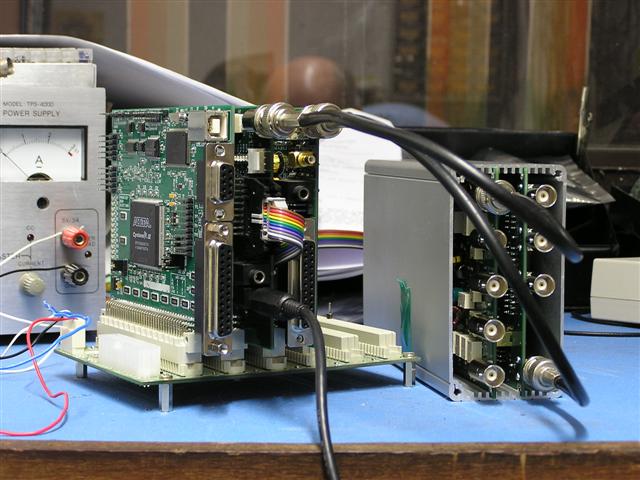

VK6APH MOPA

Introduction -- What's It All About?

The HPSDR is an open source (GNU type) hardware and software project intended as a "next generation" Software Defined Radio (SDR) for use by Radio Amateurs ("hams") and Short Wave Listeners (SWLs). It is being designed and developed by a group of SDR enthusiasts with representation from interested experimenters worldwide.

The rationale behind the project is to break the overall design up into a number of modules. Each module is designed by an individual or group and connects to other modules using a pre-defined and common bus -- rather like plugging boards into a PC motherboard.

This modular approach enables prospective users to incorporate just the modules that interest them as well as designing their own variants if desired. The approach also enables new ideas and circuits to be tested by replacing an existing module. Since the majority of modules will be retained, such experimentation can be done with minimum disruption to an existing working system.

The modules vary in complexity from simple bandpass filters and input/output interfaces, to full blown DSP functions. Such variety enables experimenters with varying degrees of experience to contribute.

Thus far, the modules have each been named for easier identification when talking or writing about them. On this website, each module has its own web page, as noted by the tab selections near the top of the page. Some of the modules are being designed so that they can be either used in conjunction with others or stand-alone. Each module board size (except the backplane) will be 100 mm. by 120 to 220 mm. and use either a 96 pin or 64 pin DIN41612 type connector.

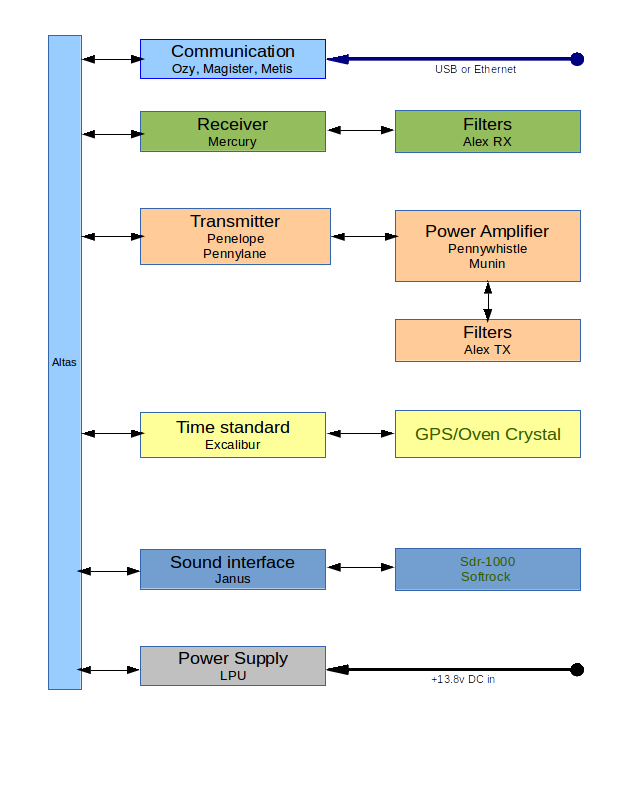

Hardware Block Diagram

The following block diagram is a listing of the main parts of a HPSDR system. Note that the diagram is clickable and will take to webpages on the listed components. Also note that there is a bold black line coming in which is the common +13.8v DC power and the blue line indicates the connection to the computer.

Block Diagram

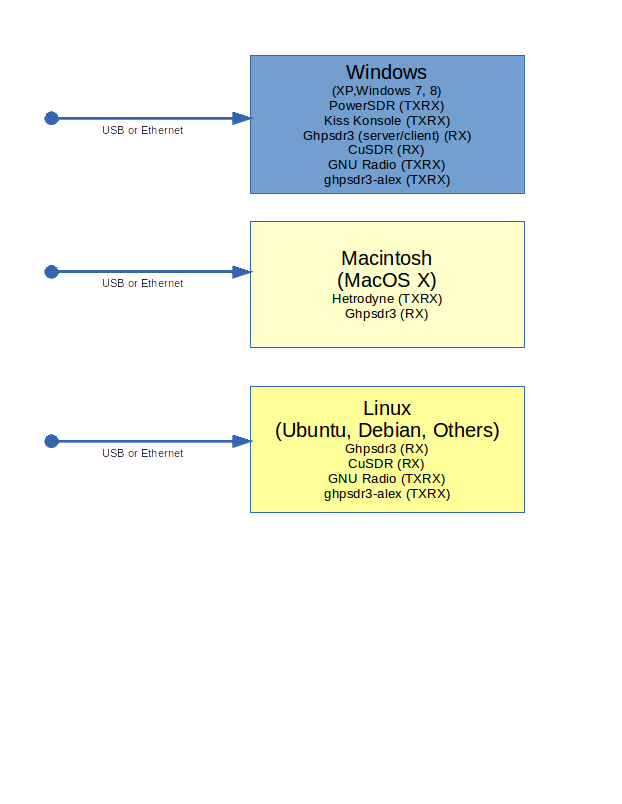

Software Block Diagram

The second block diagram lists the software currently available as open source to operate the HPSDR hardware. The blue line indicates the connection to the hardware.

There are other programs that can work with HPSDR hardware. Some these include WinRad, WinRadHD, CWSkimmer to name a few.

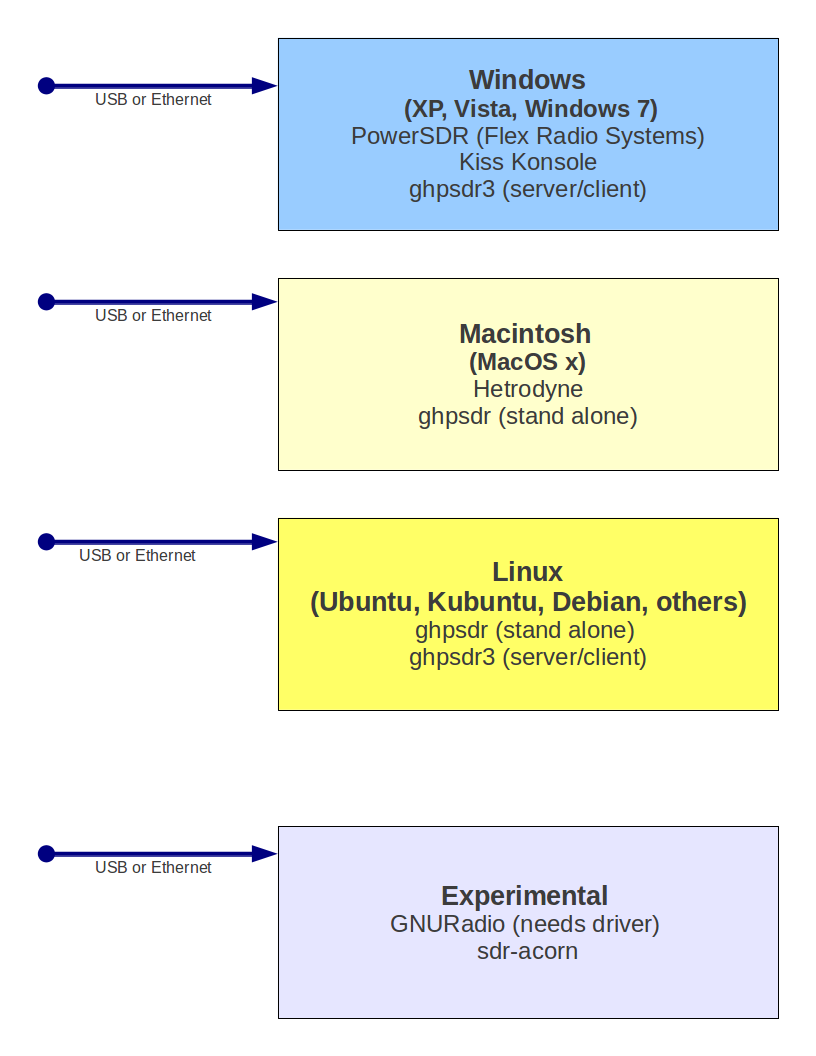

Computer Block Diagram

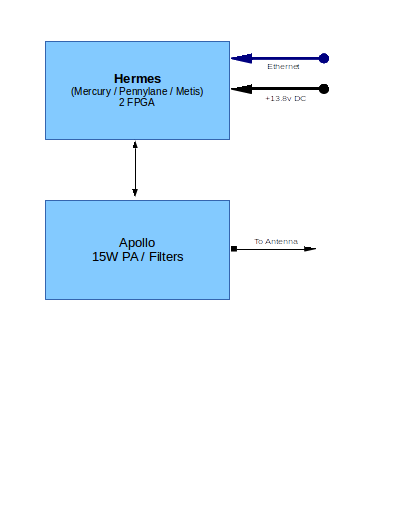

Hermes block diagram

The following is a block diagram for the Hermes project. The Hermes project uses technology developed in the HPSDR boards but combines them in to two board that fit in a Euro style box. This radio might be for those that wish to go mobile with their SDR or do not wish to use the modular approach used in the development of the other boards. There has been some confusion in the that hardware is compatible and the same software works with these boards but the Hermes/Apollo boards are not design to use other HPSDR boards as they are developed in the future.

Hermes Block Diagram


Some Glossary Definitions

Since this website and project is attracting interested persons who are not Radio Amateurs and hams who may not be familiar with some of the technical jargon, here are a few words about what some of the mysterious acronyms, etc. may stand for.

Radio Amateurs ("hams") -- persons around the world interested in radio communications and do so without monetary compensation (hence as in sports, the term "amateur" as opposed to "professional" in the sense of not receiving money for what they do). For more information on this hobby/service, start with www.hello-radio.org. In many cases on this website, we'll use the assigned "call letters" of the ham -- in most cases, more information can be found about this person by going to a search website such as http://qrz.com.

SDR - Software Defined Radio -- These are radios where most of the radio is defined in software code either in FPGA, or in a supporting computer.

DSP - Digital Signal Processing -- The processing of a digitized signal with computer algorithms

FPGA - Field Programmable Gate Array -- These are large sets of gates in reconfigurable array. the chipc can be reprogramed by code.




Open source design

Brief definition of Open Source

In a "nutshell", open source is a term that is applied to a philosophy, in that the production and organization of a project or system is created through open and cooperative efforts.

Open source software refers to computer software available with its source code and under an "open source license" to study, change and improve its design and functionality.

There are many "Open source software" licenses, the most prominent being the GNU General Public License (GNU GPL or simply GPL), originally written by Richard Stallman. The GPL grants the recipients of a computer program the following rights, or freedoms.

* The freedom to run the program, for any purpose.
* The freedom to study how the program works, and modify it.
* The freedom to redistribute copies.
* The freedom to improve the program, and release the improvements to the public.

The users are treated like co-developers, are encouraged to submit additions to the software, code fixes, bug reports, documentation etc. Having more co-developers increases the rate at which the software evolves. Furthermore, each end user's machine provides an additional testing environment. This new testing environment offers the ability to find and fix a new bug quickly.

[Note: this definition does not go into the various obligations and legalities and is intended to be brief and non-exhaustive. The original was supplied by Kevin, M0KHZ with a few words "Americanized" by the webmaster.]

Open Hardware License - Non-Commercial License

This GPL philosophy extends to the hardware for this HPSDR cooperative project. However it was felt by many that the software GPL and similar licenses would not adequately cover the hardware portion of this project, so an Open Hardware License (OHL) was devised. Also, another license referred to as the NCL - Non-Commercial License, was implemented to take care of situation where the project developers wish to reserve commercial licensing rights. The complete text of the two versions of the OHL/NCL licenses along with some explanation may be found on the TAPR website at http://www.tapr.org/ohl.html

Future Modules

In order to provide a complete SDR, other modules will require developing.

There is still much to be done in bringing HPSDR to fruition. For those experimentally minded Amateurs this may turn out to be the golden age of (software defined) radio!

Milestones

Please look at ht HPSDR history page to learn more on how we got to where we are today.

Further Information

There are several sources of further information about this project and the various modules. On the "cutting edge" of information we have a discussion list. There's more information about the list/reflector if you click the menu bar in the upper left area of this web page where it says "Discussion List". Message traffic on the list varies from 0 to 20 or more in a day.

For those who just wish to be informed about important announcements or events in the HPSDR project, we have an "announce only" list with very low traffic. More information about this announcement list may be found at the same "Discussion List" menu bar.

How does one become a participant? Jump right in! Subscribe to the discussion list. Make suggestions, ask questions, offer ideas for new modules, volunteer to help with design, research alternatives, PCB layout, documentation, firmware and software ...

The tabs at the top edge of this web page will lead you to individual module web pages. We also now have a "wiki" at Community_Portal to which the project leaders have direct edit access and is more current than the module web pages on this website. You'll most likely find the latest information on the design and progress in the wiki.

Contacting Us

The best method of contacting any of the developers is to join the discussion list (you must subscribe in order to post a message) and "talk" to them directly there.

For web page inquiries, reporting broken links or incorrect information, wiki, discussion list subscriptions, etc., please email the discussion list administrator and web/wiki-master directly at "KV0S" at "openhpsdr" dot "org".
