File:100WPA 005.jpg

From HPSDRwiki
Jump to: navigation, search
Original file(2,272 × 1,712 pixels, file size: 807 KB, MIME type: image/jpeg)

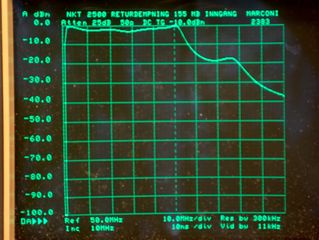

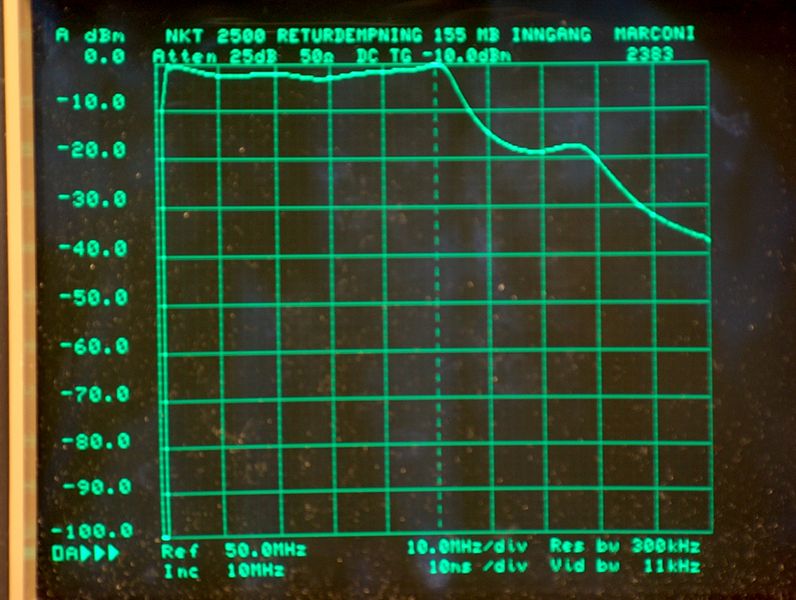

Setup with Tracking Generator/ Spectrum Analyzer to measure small signal gain from 0-100 MHz. Center frequency=50 MHz. Horizontal resolution: 10 MHz/div. Vertical resolution: 10dB/div
