A complete HPSDR transceiver in a Pandora Box

From HPSDRwiki

Jump to: navigation, search

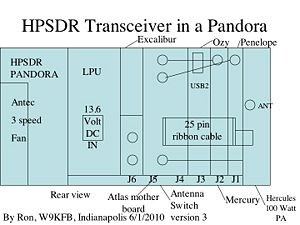

Click here to see a full sized view of this block diagram of how HPSDR components were arranged in a PANDORA Enclosure to make a 100 Watt transceiver operating from 160 to 6 meters

The goal with this project was to assemble a complete 100 Watt 160 to 6 meter HPSDR rig using available HPSDR components. The computer and power supply were not included because a HPSDR station could be mobile operating from the vehicle's battery and controlled by a high end lap top computer. At the W9KFB shack this rig is powered by an Astron RS-35M power supply and the computer used has an Intel Core2 Quad CPU Q8200 2.32 GHz. 3.24 GB of RAM with Physical Address Extension. The operating system is Microsoft Windows XP Professional, Version 2002 with Service Pack 3. PowerSDR version 1.19.3 is used to demonstrate that version's built-in support of the Hercules 100 Watt Amplifier. Also note that CW operations are aided by using K1EL's Winkeyer USB.

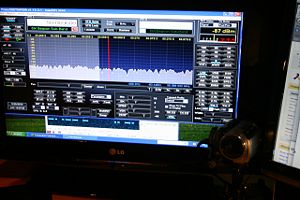

PowerSDR version 1.19.3 with the default skin

A list of all HPSDR components follows with the source web addresses:

Pandora Enclosure Kit TAPR

LPU Kit(Low Power Power Supply Unit) TAPR

6 slot Atlas Mother Board Kit TAPR

Mercury Receiver Board (assembled and tested)TAPR

Magister (Ozy) (assembled and tested) TAPR

Excalibur Kit TAPR

Antenna Switch with ribbon cable, ribbon cable connectors, 6 meter LNA, and metal enclosure (version 3 fits in 2 Atlas slots)(assembled and tested) NT-Electronics

Penelope transmitter board (assembled and tested) NT-Electronics

Hercules 100 Watt Amplifier with Monitor board (partial kit) NT-Electronics

Antec 3 speed fan Fry's Electronics

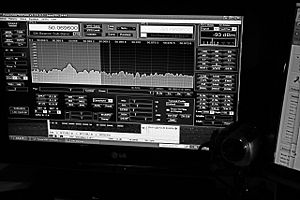

PowerSDR version 1.19.3 with the IK3VIG Blue2 skin)

For software see PowerSDR Software installation information published in this Wiki.

Construction notes:

1. Put an RFI clamp-on choke on the 25 pin ribbon cable between the antenna switch and Penelope and between Penelope and Hercules.

2. Use two pairs of Anderson power poles for the 12 volt input connectors. Use of only one pair will cause a measurable voltage drop at full power output. You may want to consider the installation of a separate connector for the high current requirement of Hercules (25 Amperes). A front mounted power switch would be a welcome addition to the rig.

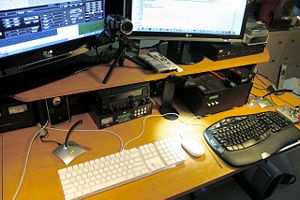

W9KFB's operating position

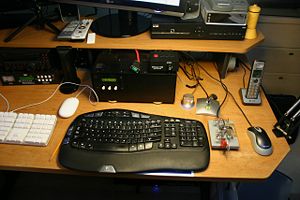

W9KFB's operating position
W9KFB's operating position

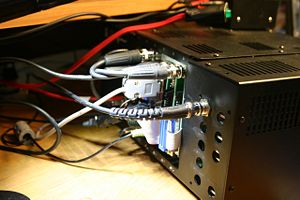

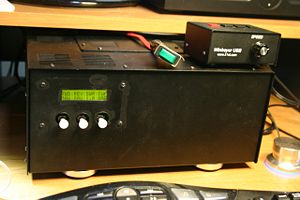

HPSDR rig consisting of a Pandora box filled with the following HPSDR components: Atlas, Mercury, Penelope, Ozy, LPU, Excalibur, Antenna Switch, and Hercules.

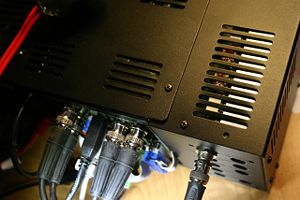

HPSDR rig consisting of a Pandora box filled with the following HPSDR components: Atlas, Mercury, Penelope, Ozy, LPU, Excalibur, Antenna Switch, and Hercules.
