The High Performance Software Defined Radio (HPSDR) project develops "next generation" Software Defined Radios (SDR) for use by Radio Amateurs ("hams") and Short Wave Listeners (SWLs). It is being designed by a group of SDR enthusiasts with representation from interested experimenters worldwide.
The discussion list membership currently stands at over 900 and includes such SDR enthusiasts as Ray Anderson WB6TPU, Steve Bible N7HPR, Phil Covington N8VB, Rick Hambly W2GPS, Phil Harman VK6APH, Lyle Johnson KK7P, Ulrich Rohde N1UL, and Bill Tracey KD5TFD.

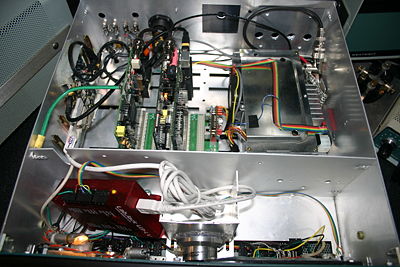

The rationale behind the project is to break the overall design up into a number of modules. Each module is designed by an individual or group and connects to other modules using a pre-defined and common bus -- rather like plugging boards into a PC motherboard.
This modular approach enables users to incorporate just the modules that interest them as well as designing their own variants if desired. The approach also enables new ideas and circuits to be tested by replacing an existing module. Since the majority of modules will be retained, such experimentation can be done with minimum disruption to an existing working system.
The modules vary in complexity from simple bandpass filters and input/output interfaces, to full blown DSP functions. Such variety enables experimenters with varying degrees of experience to contribute. If you wish to contribute your skills to this project, the best way is to advise your availability on the discussion list and communicate with project leaders -- or if you have a proposal for a new module, fly it on the discussion list and if feasible, become a project leader!
The modules have each been named for easier identification when talking or writing about them. On this wiki, each module has its own page, as noted by the links below. Some of the modules are being designed so that they can be either used in conjunction with others or stand-alone. Each module board size (except the backplane) will be 100 mm by 120 to 220 mm and use either a 64 pin or 96 pin DIN41612 type connector.
- 1 HPSDR History and Philosophy
- 2 Module/Board Availability
- 3 Our Internet Resources
- 4 Wiki Sysop
- 5 Go to the Community Portal for project information
HPSDR History and Philosophy
The High Performance SDR project was started in October, 2005 by Phil Covington (N8VB) as the Open_High_Performance_SDR @ Yahoo group. In November, 2005 another small group, based on the Xylo board product (an FPGA experimenter's board) with SDR applications in mind, evolved and the Xylo-SDR discussion list was formed. On March 1, 2006 the two groups merged to form HPSDR and the two discussion lists were replaced with the present HPSDR list.
Initially a small group of developers, HPSDR has grown to over 800 members, including hardware, software and firmware developers; system architects; analog and digital designers; RF engineers; planners, executers and users; testers, documenters and technicians; bank presidents and sanitation engineers. While the last two are dubious, the point is that HPSDR is a diverse group. Everyone has something to contribute and all are encouraged to participate.
The rationale behind HPSDR is to break the overall design up into a number of modules. Each module is designed by an individual or group and connects to other modules using a pre-defined and common bus -- rather like plugging boards into a PC motherboard.
This modular approach enables prospective users to incorporate just the modules that interest them as well as designing their own variants if desired. The approach also enables new ideas and circuits to be tested by replacing an existing module. Since the majority of modules will be retained, such experimentation can be done with minimum disruption to an existing, working system.
The modules vary in complexity from simple band-pass filters and input/output interfaces to full blown DSP functions. Such variety enables experimenters with varying degrees of experience to contribute. If you are interested in contributing, you are invited to join in new or ongoing design, development and documentation efforts.
The modules have each been named for easier identification when talking or writing about them. On the HPSDR website, each module has its own web page. Some of the modules are being designed so that they can be either used in conjunction with others or standalone. Each module board size (except the Atlas backplane) is typically 100mm by 120mm (optionally up to 220mm) and uses either a 64 pin or 96 pin DIN41612 type connector.
Completely assembled and tested, parts kits, and/or bare boards may be available for each of the HPSDR projects on a limited basis. See the FAQ section or individual wiki pages for what is available at the present time. Generally, the boards, kits, or assemblies will be available for purchase through TAPR (http://tapr.org) and an indication of pre-production interest is gaged by a sign-up process located at website http://www.hamsdr.com where one must register, log in, and use the "Projects" tab to get to the list.
Hardware Block Diagram

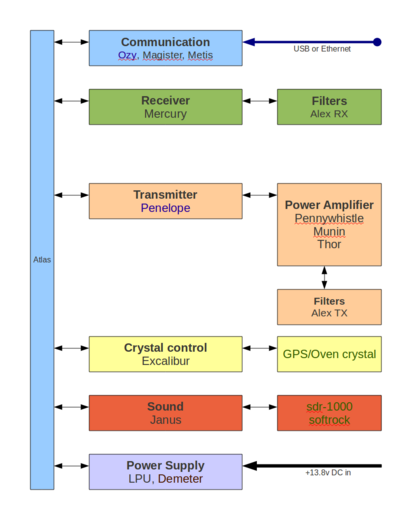

The following block diagram is a listing of the main parts of a HPSDR system. Note that the diagram is clickable and will take to webpages on the listed components. Also note that there is a bold black line coming in which is the common +13.8v DC power and the blue line indicates the connection to the computer.
Software Block Diagram

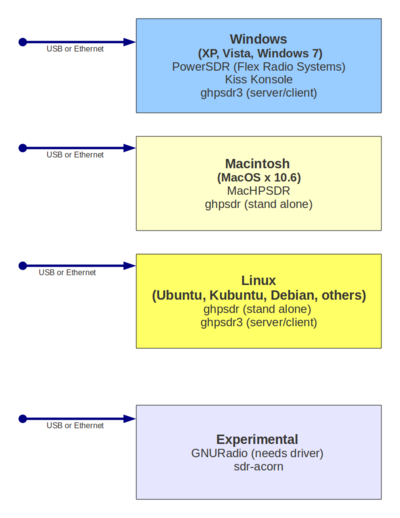

The second block diagram lists the software currently available as open source to operate the HPSDR hardware. The blue line indicates the connection to the hardware.
There are other programs that can work with HPSDR hardware. Some these include WinRad, WinRadHD, CWSkimmer to name a few.
Hermes block diagram

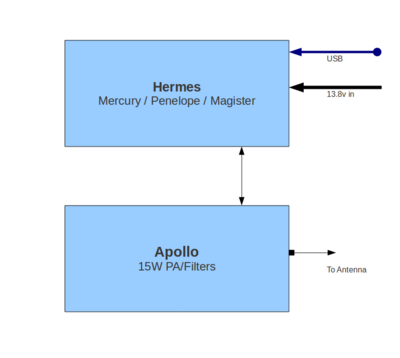

The following is a block diagram for the Hermes project. The Hermes project uses technology developed in the HPSDR boards but combines them in to two board that fit in a Euro style box. This radio might be for those that wish to go mobile with their SDR or do not wish to use the modular approach used in the development of the other boards. There has been some confusion in the that hardware is compatible and the same software works with these boards but the Hermes/Apollo boards are not design to use other HPSDR boards as they are developed in the future.
In order to provide a complete SDR transceiver other modules will be required. These include bandpass filters, a narrow band I/Q down converter to supplement the Mercury A/D converter, and low power transmitter functions etc.
There is still much to be done in bringing the HPSDR project to fruition. For those experimentally minded Amateurs, this may turn out to be the golden age of (software defined) radio!
Open source design
Brief definition of Open Source
In a "nutshell", open source is a term that is applied to a philosophy, in that the production and organization of a project or system is created through open and cooperative efforts.
Open source software refers to computer software available with its source code and under an "open source license" to study, change and improve its design and functionality.
There are many "Open source software" licenses, the most prominent being the GNU General Public License (GNU GPL or simply GPL), originally written by Richard Stallman. The GPL grants the recipients of a computer program the following rights, or freedoms:
- The freedom to run the program, for any purpose.
- The freedom to study how the program works, and modify it.
- The freedom to redistribute copies.
- The freedom to improve the program, and release the improvements to the public.
The users are treated like co-developers, are encouraged to submit additions to the software, code fixes, bug reports, documentation etc. Having more co-developers increases the rate at which the software evolves. Furthermore, each end user's machine provides an additional testing environment. This new testing environment offers the ability to find and fix a new bug quickly.
[Note: this definition does not go into the various obligations and legalities and is intended to be brief and non-exhaustive. The original was supplied by Kevin, M0KHZ and modified by the WikiSysOp.]
This GPL philosophy extends to the hardware for this HPSDR cooperative project. However it was felt by many that the software GPL and similar licenses would not adequately cover the hardware portion of this project, so an Open Hardware License (OHL) was devised. Also, another license referred to as the NCL - Non-Commercial License, was implemented to take care of situation where the project developers wish to reserve commercial licensing rights. The complete text of the two versions of the OHL/NCL licenses along with some explanation may be found on the TAPR website at http://www.tapr.org/ohl.html
In early June (2006) it was announced that agreement had been reached with TAPR http://tapr.org for TAPR to provide assistance and a "storefront" for the "products" of the HPSDR group. TAPR has a long history of supporting various digital amateur radio related ventures. We would encourage our members to become TAPR members, not only to support a worthy organization, but also to receive a member discount (usually around 10%) on their HPSDR and other purchases from them.
Assistance in project development is in the form of partial funding for alpha and beta runs of boards upon application to and approval by TAPR's Board of Directors, and then in guiding the manufacturing process. It is not the intention of TAPR to profit from providing this assistance or the manufacture of projects.
It should be emphasized that TAPR and HPSDR are independent organizations or communities and that any TAPR reproduction of HPSDR developed projects is through licensing agreements.
TAPR will be most likely the only source for HPSDR boards due to short runs and the investment required. This does not preclude individuals having their own PCB boards made in keeping with the open-source philosophy. Commercial reproduction may be restricted depending on the license granted by the board developers. Visit the TAPR website http://tapr.org for current availability.
In July (2006) the following announcement was made by Rick Hambly W2GPS, AMSAT President:
"AMSAT will immediately initiate support for The High Performance Software Defined Radio (HPSDR) project, an independent team that is dedicated to bringing high performance software defined radio devices within the reach of amateurs in terms of access to the hardware and software and at manageable prices.
This is a rare opportunity for AMSAT to easily join a major technological development and have a positive impact on both that development and AMSAT's own primary interests. The High Performance Software Defined Radio (HPSDR) project is a completely open source software (GNU Public License) and open hardware design. It has an extremely capable group of core designers, many of whom are also key AMSAT design team members, supported by a cast of hundreds.
AMSAT will support HPSDR with a modest amount of financial, personnel and other resources. Financial resources will be under AMSAT control and will be used to support activities such as joint HPSDR and Eagle design meetings. AMSAT's Engineering team will submit a 2007 budget for the AMSAT Board's approval at the annual meeting in October. The modest resources that are needed in 2006 can be provided by the Eagle team project".
