Ghpsdr3 monitor

From HPSDRwiki

Jump to: navigation, search

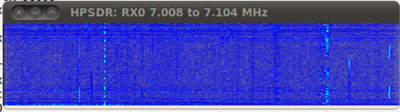

Screenshot of the monitor GUI on 40 meters. (Click to enlarge)

The monitor program is a C GTK2 program. It is designed to be a stand alone program providing a waterfall on a different frequency that the ghpsdr receiver.


monitor accepts the following command on the command line.

--receiver 0|1|2|3 (default 0)

Receiver that this client is attached to (Please note singular). Also please not that receivers are 0 based.

--server 0.0.0.0 (default 127.0.0.1)

ip address of the server machine. Default is the localhost (127.0.0.1).

--frequency 0 (default 0)

The center frequency of the waterfall spectrum.

--update 15 (default 15)

The center update rate of the waterfall spectrum. The range is 1-40/second. (default 15/second).

--high -60 (default -60)

The upper limit of the color for the waterfall signal intensity (default -60 db).

--low -130 (default -130)

The lower limit of the color for the waterfall signal intensity (default -130 db).
