Phoenix Layouts

From HPSDRwiki

Jump to: navigation, search

These are a roughly scaled version of the various Phoenix board layers. Note that I have used a double sided board and done as well as possible in creating a groundplane.

Kicad can output in Gerber format for making up artwork.

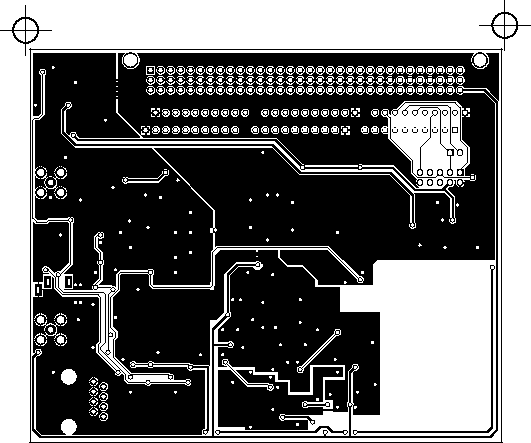

Phoenixbot.gif Bottom Layer

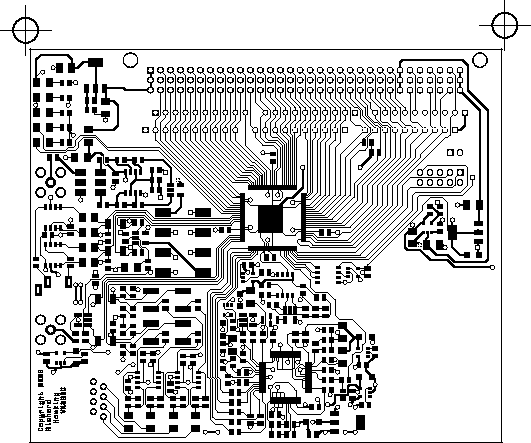

Phoenix top layer.gif Top Layer

Phoenix solder top.gif Top Solder Mask

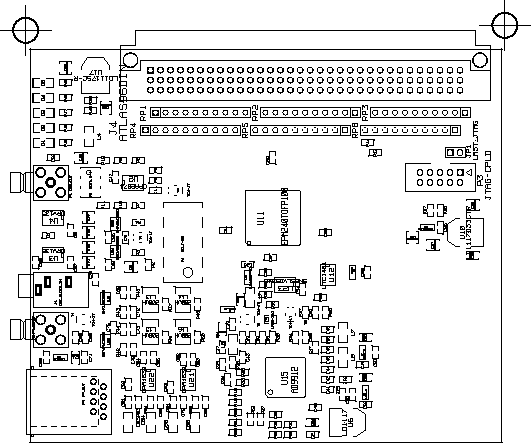

Phoenix silkscreen.gif Silkscreen with component numbers
