PENELOPE - Companion Exciter to Mercury

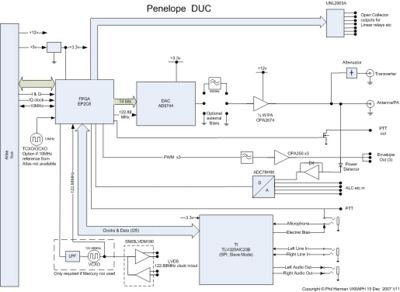

block diagram of the Penelope DUC

The Penelope digital up converter (DUC) is a 1/2-watt transmitter/exciter board. It makes a good companion to the Mercury HF direct sampling receiver board. When connected to the Atlas (bus) it will process the I and Q signal from the personal computer.

The project leader for the board was Phil VK6APH with KK7P doing the PCB layout.

NOTE: Penelope is being manufactured by Gerd, DJ8AY. It has also been superseded by Pennylane which is available from iQuadLabs

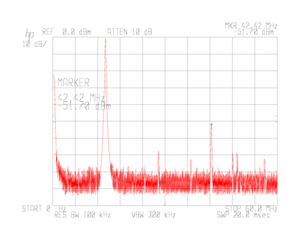

Wide band spurious output by John N8UR. Penelope producing 0.25w out on 14.1MHz

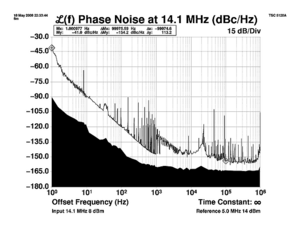

Phase noise plot by John N8UR. Penelope producing 0.25w out on 14.1MHz and phase locked to on board 10MHz TCXO

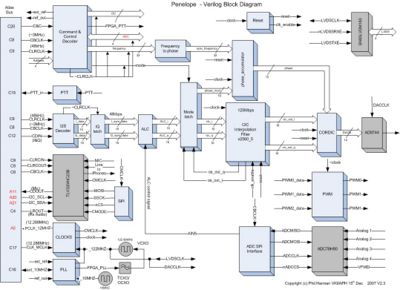

Verilog block diagram
